Configure OpenID connect identity providers

We support any OpenID compliant identity provider and also GitHub authN workflow.

GitHub authN

Requirements

• kubectl host: an host with MiniKube installed and running
• A GitHub account
• remote host: A "remote" machine with a port that is reachable by the MiniKube host

Create an OAuth GitHub app

As a first step, you need to create a GitHub OAuth application to allow interLink to make authentication between your Kubernetes cluster and the remote endpoint.

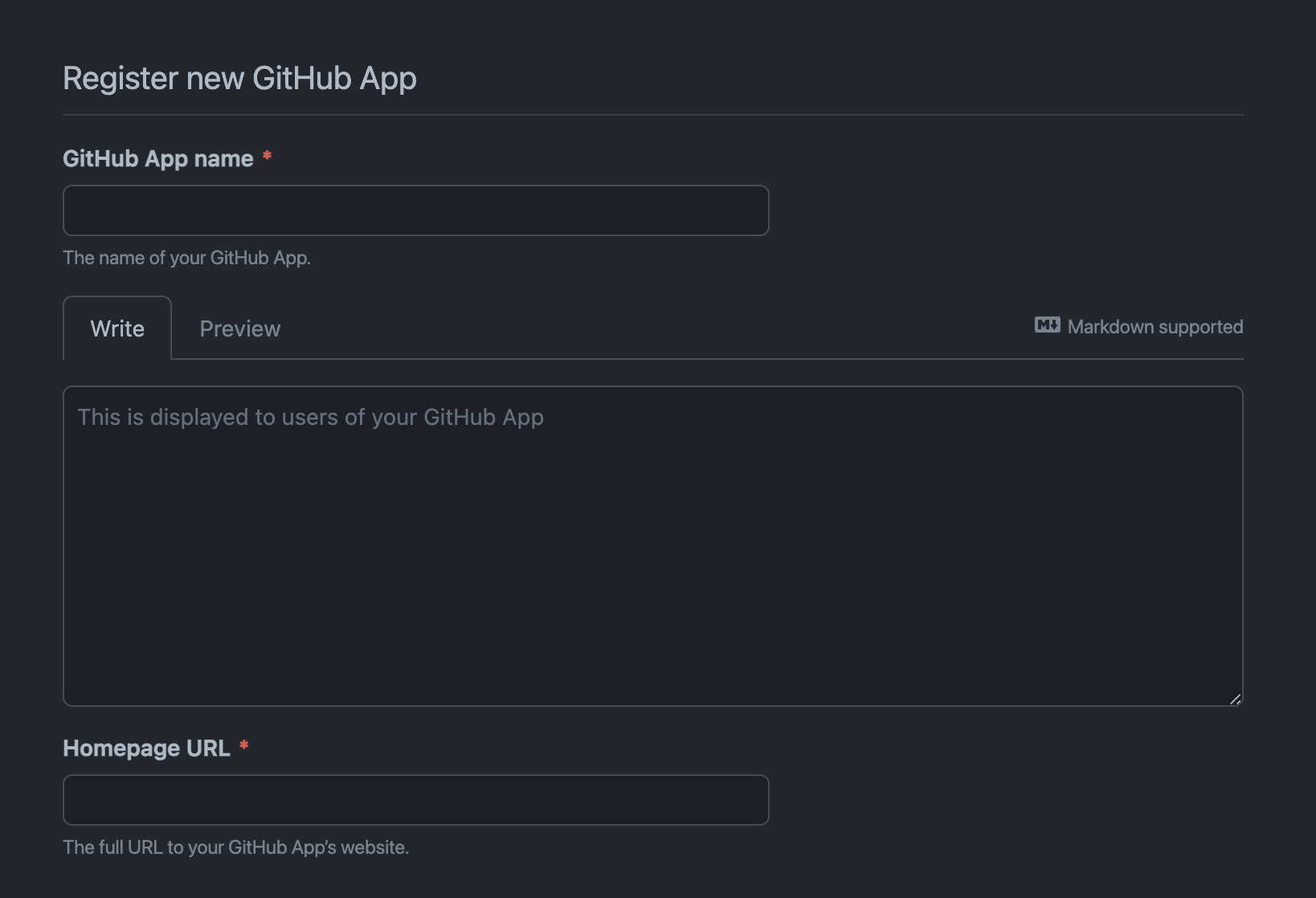

Head to https://github.com/settings/apps and click on New GitHub App. You should now be looking at a form like this:

Provide a name for the OAuth2 application, e.g. interlink-demo-test, and you can skip the description, unless you want to provide one for future reference. For our purpose Homepage reference is also not used, so fill free to put there https://interlink-hq.github.io/interLink/.

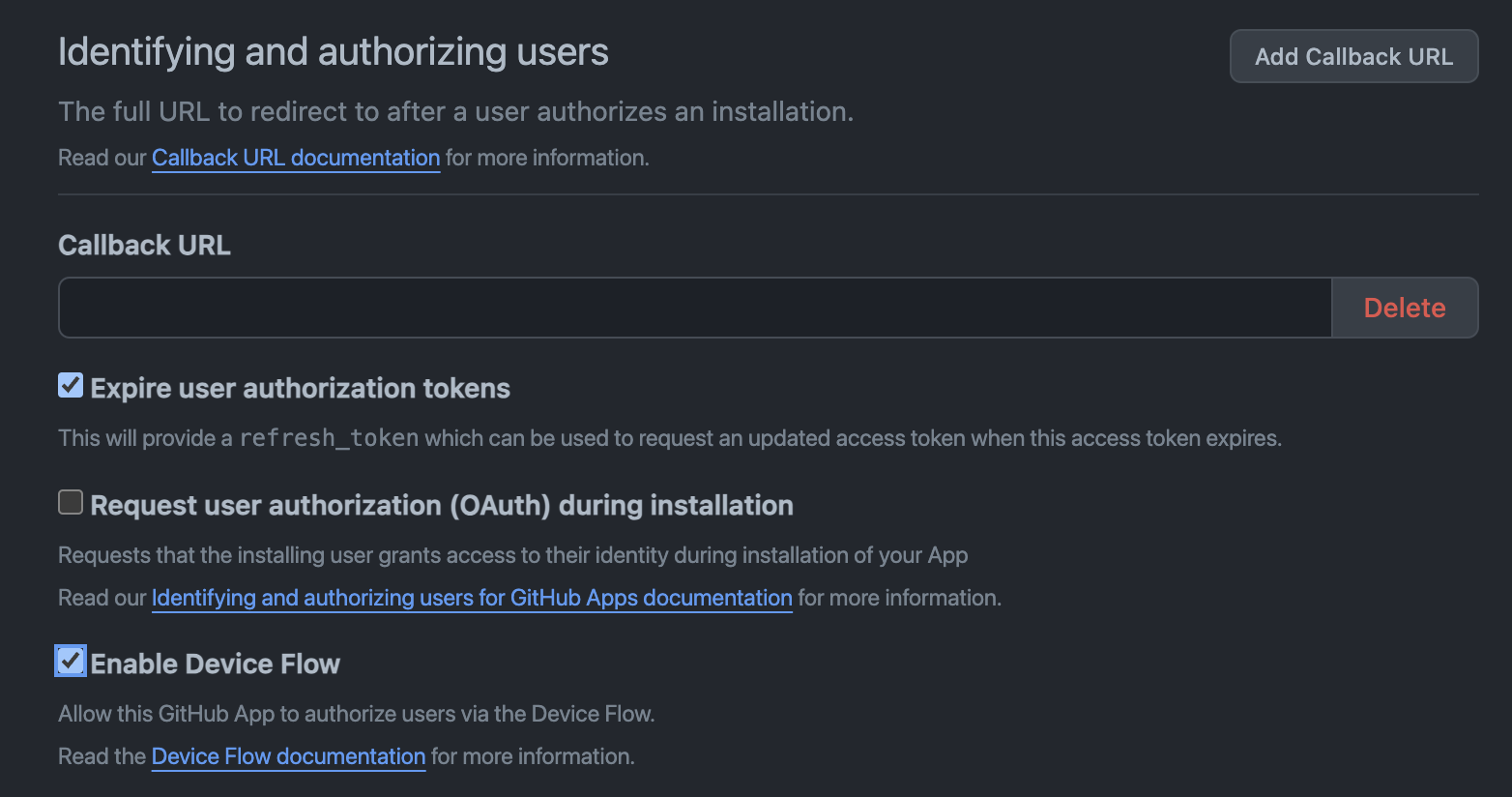

Check now that refresh token and device flow authentication:

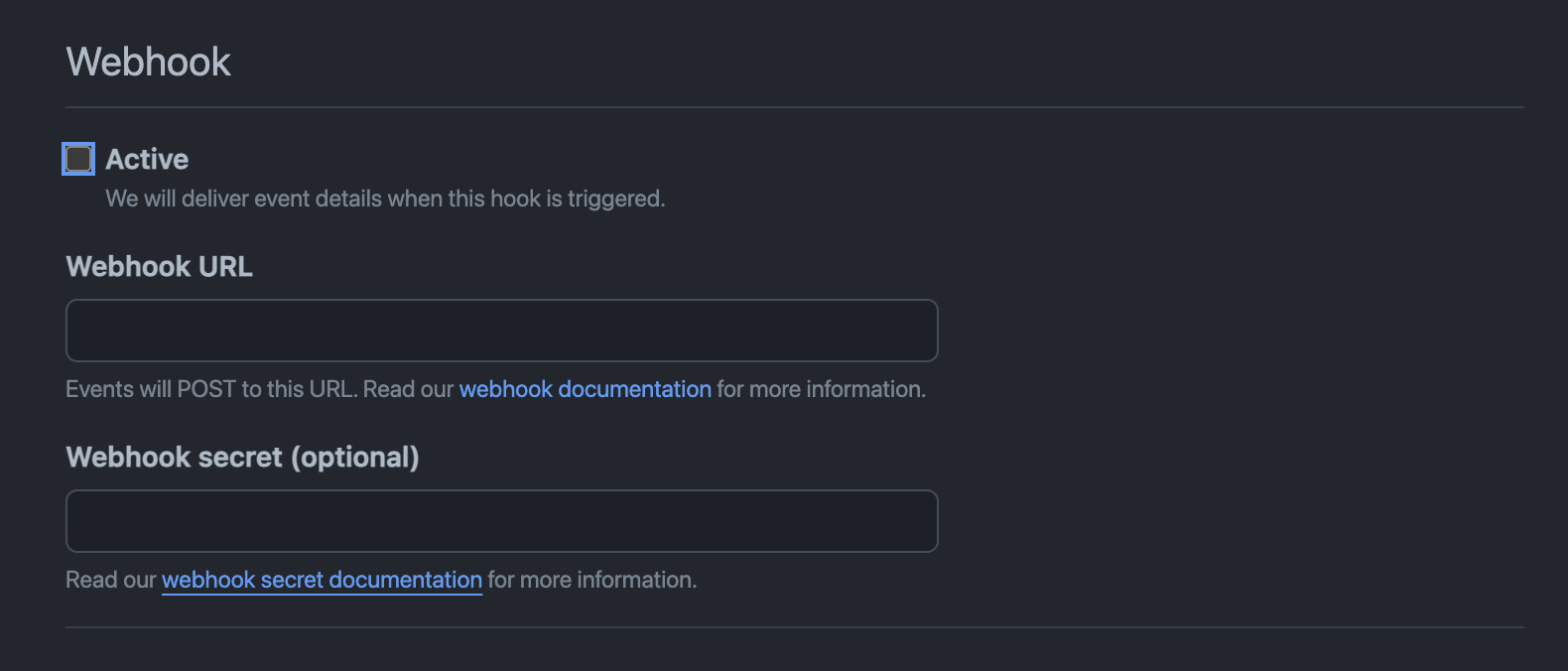

Disable webhooks and save clicking on Create GitHub App

You can click then on your application that should now appear at https://github.com/settings/apps and you need to save two strings: the Client ID and clicking on Generate a new client secret you should be able to note down the relative Client Secret.

Now it's all set for the next steps. You should be able to set it for authenticating the virtual kubelet with the interLink remote components with the following piece of the installer configuration:

oauth:
  provider: github
  issuer: https://github.com/oauth
  grant_type: authorization_code
  scopes:
    - "read:user"
  github_user: "GH USERNAME HERE"
  token_url: "https://github.com/login/oauth/access_token"
  device_code_url: "https://github.com/login/device/code"
  client_id: "XXXXXXX"
  client_secret: "XXXXXXXX"

EGI Check-in

If you have an account for EGI check-in, you should be able to set it for authenticating the virtual kubelet with the interLink remote components with the following piece of the installer configuration:

oauth:
  provider: oidc
  issuer: https://aai.egi.eu/auth/realms/egi
  scopes:
    - "openid"
    - "email"
    - "offline_access"
    - "profile"
  audience: interlink
  grant_type: authorization_code
  group_claim: email
  group: "YOUR EMAIL HERE"
  token_url: "https://aai.egi.eu/auth/realms/egi/protocol/openid-connect/token"
  device_code_url: "https://aai.egi.eu/auth/realms/egi/protocol/openid-connect/auth/device"
  client_id: "oidc-agent"
  client_secret: ""

danger

Remember to put your email in the group field!

Indigo IAM

If you have an account for Indigo IAM, you should be able to set it for authenticating the virtual kubelet with the interLink remote components. Follow those steps to setup a new client in the IAM portal and get the necessary information to fill the configuration. This guide is specific for the IAM portal https://iam.cloud.infn.it/ but it should be similar for other IAM portals that are OpenID compliant.

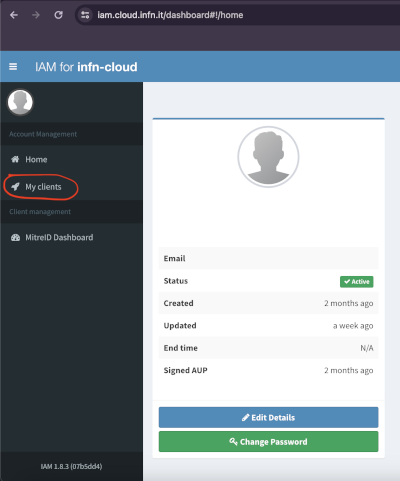

1. Go to the IAM portal and log in.

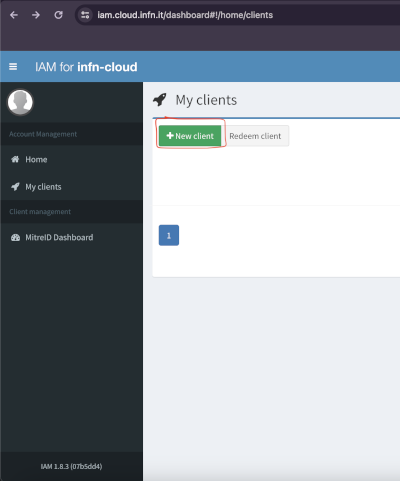

2. After logging in, click on the My clients tab on the left side of the page and then select New client as shown in the images below.

3. Set a name you prefer for the client. 4. Select the Scopes tab and add the following scopes: openid, email, offline_access, profile, wlcg, wlcg.groups. 5. Select the Grant types tab and add the following grant types: authorization_code, client_credentials, refresh_token, urn:ietf:params:oauth:grant-type:device_code. 6. Save the client by pressing the Save client button.

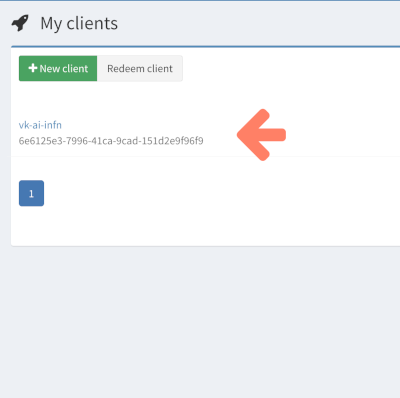

After creating the client, you will be able to see the new client in the My clients page as show in the image below.

You can click on the client to see the client details. You will find the Client id under the Main tab and the Client secret under the Credentials tab. Now, with those information, you can fill this piece of the installer configuration:

oauth:
  provider: oidc
  issuer: "https://iam.cloud.infn.it/"
  scopes:
    - "openid"
    - "email"
    - "offline_access"
    - "profile"
  audience: users
  grant_type: authorization_code
  group_claim: email
  group: "YOUR EMAIL HERE"
  token_url: "https://iam.cloud.infn.it/token"
  device_code_url: "https://iam.cloud.infn.it/devicecode"
  client_id: "YOUR CLIENT ID HERE"
  client_secret: "YOUR CLIENT SECRET HERE"
